Customer reviews 1/2 Stainless Steel Electric Solenoid Valve 12V DC Normally Closed
So you can check out the other reviews 🔥 Flаѕh Sаlе 1/2 Stainless Steel Electric Solenoid Valve 12V DC Normally Closed at Amazon.com
only with $
| Material | Stainless Steel |
| Brand | U.S. Solid |
| Item Dimensions LxWxH | 5.12 x 3.54 x 2.76 inches |
| Exterior Finish | Stainless Steel |
| Inlet Connection Type | National Pipe Tapered |
- Constructed with industrial grade stainless steel, this valve is very durable and resilient, leak resistant, corrosion resistant, and optimal for higher pressure and temperature projects. It can be used with drinking water or other water projects, gasoline, diesel fuel, kerosene oil, natural gas, air etc.
- This valve was manufactured with a VITON seal. VITON is the most durable and high performance rubber material with the ability to resist high temperatures and corrosive chemicals and other fluids like gasoline, diesel fuel, oils, and lubricants.
- This highly responsive valve will open and close in less than 1 second when actuated; meaning it will open or close the flow instantaneously when energized or de-energized. Also, our U.S. SOLID engineers have determined that the life cycle of this valve is well over a million cycles with proper operating conditions and maintenance.
- PLEASE NOTE: This valve is NOT a continuous duty valve and should NOT be in continuous use for more than 8 hours in a single cycle; to do so will shorten the life of the valve and may cause the core of the valve to burn out. If you need a continuous duty valve for your project please search for our U.S. SOLID Motorized Ball Valves.
- As with all U.S. SOLID products, this valve comes with a ONE YEAR WARRANTY. If the valve does become defective within the first year of purchase, U.S. SOLID will gladly replace it.
Product Description

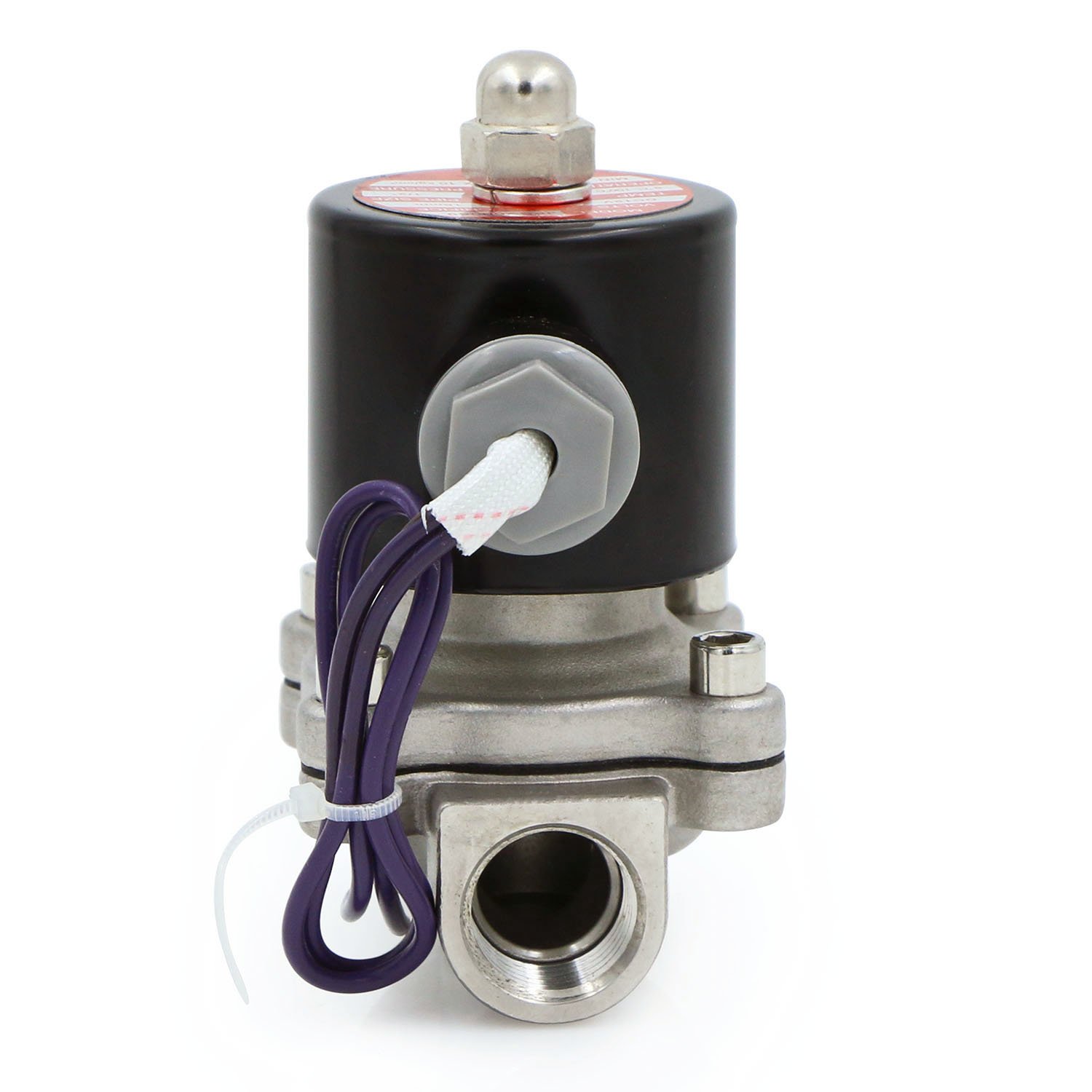

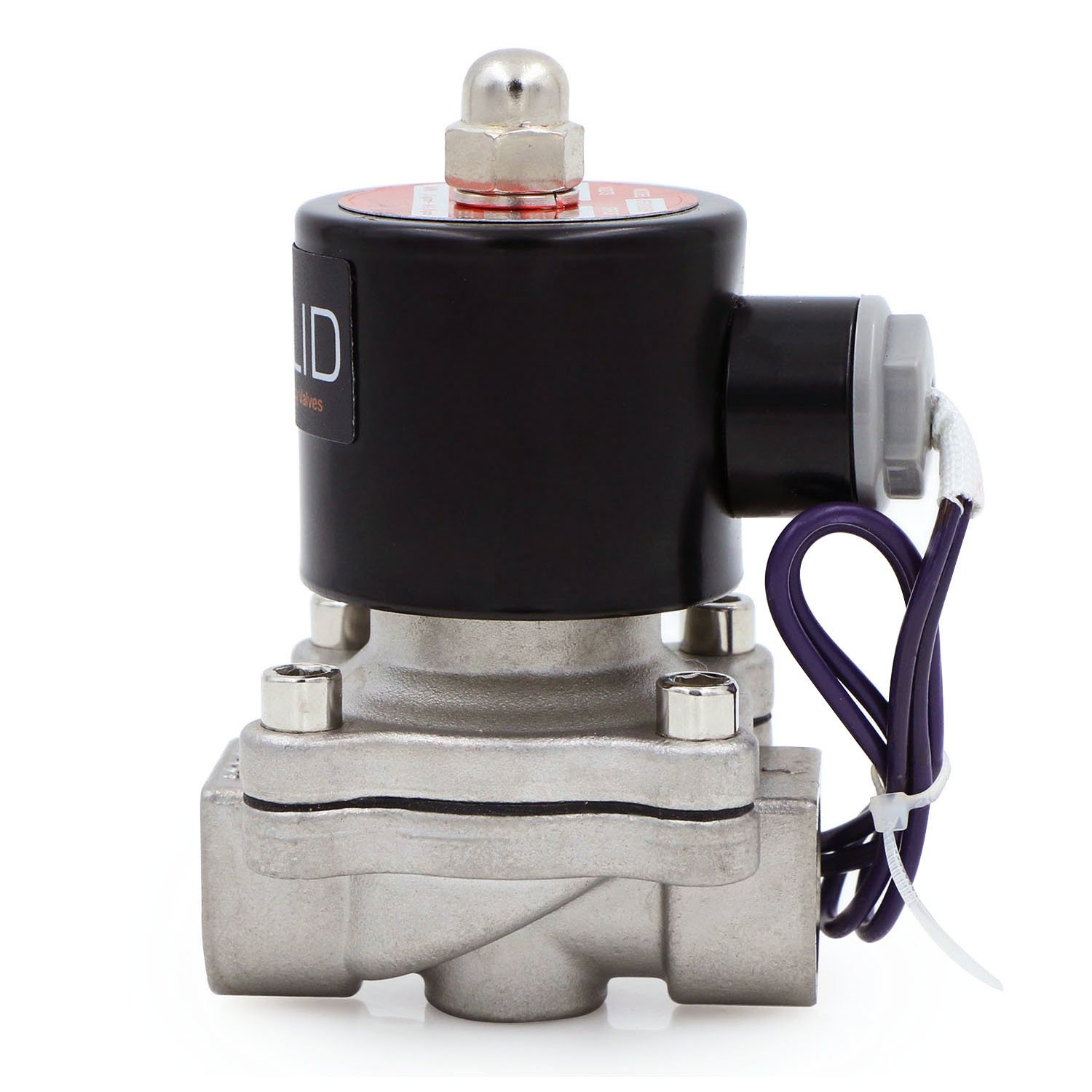

U.S. Solid normally closed (N/C) electric solenoid valve is constructed with a stainless steel body, one-half inch (1/2") female threaded (NPT) connections, and heat and oil resistant Viton gasket.
Suitable for use with hot or cold water, gas, air, very low viscosity fluids (
Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, harsh chemicals, flow control for irrigation systems, reverse osmosis systems, or home brewing.
Brand: U.S. Solid
Model: USS2-00069
Size: 1/2"
Flow Aperture: 16 mm
Body Material: Stainless steel
Gasket / Diaphragm / Seal: VITON
Rated voltage: DC 12 V, ± 10%
Current: 1.667 A
Power rating: 20 W
Operation Type: Semi-direct Lift Valve
Operation Mode: Normally Closed
Operational pressure range: 0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil)
Flow capacity: 4.8 gallons per minute (GPM) of water at 60oF with a pressure drop of 1 PSI
Flow value: 4.8 Cv
Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)
Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)
Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc. Can not be used in strong acid, strong base, waste water, industrial gas and other media containing many impurities.
Valve is not intended to be energized continuously for more than 8 hours. This can lead to burnout of the coil, and malfunctioning of the valve.
Quality assurance: CE Certified
Specifications for this item
----------------------------
